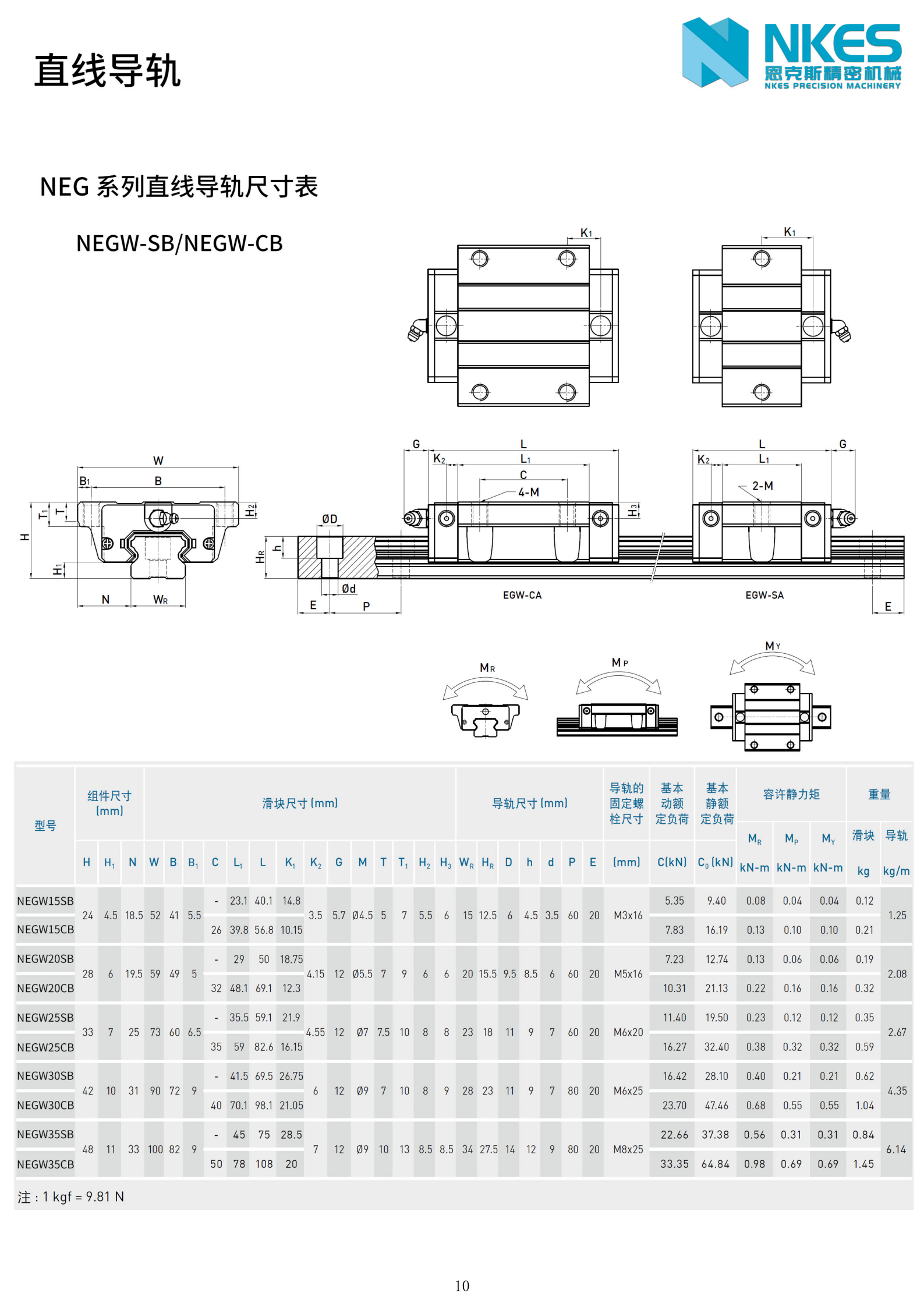

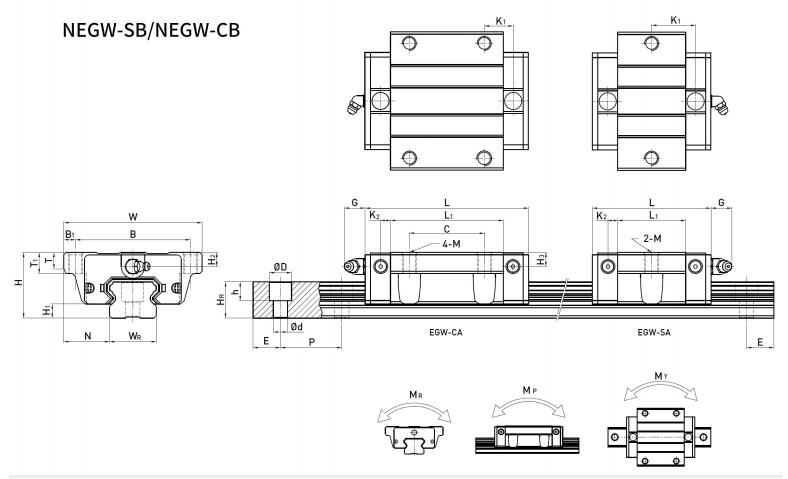

| Inquiry | Designations | Unit Dimensions (mm) | Block Dimensions (mm) | Rail Dimensions (mm) | Rail Mounting Bolt Dimensions (mm) | C(kN) | C0(kN) | MR(kN-m) | MP(kN-m) | MY(kN-m) | Weight | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | M | T | T1 | H2 | H3 | WR | HR | D | h | d | P | E | Block (kg) | Rail (kg/m) | ||||||||
The NEG Series linear guides are designed with a low-profile, compact structure, making them ideal for high-speed automation and space-limited equipment. They feature a four-row ball bearing design, delivering high rigidity and equal load capacity in all directions. The self-aligning capability compensates for mounting errors, ensuring high precision and smooth motion.
